AD641APZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD641APZ
Datasheet:
Description:

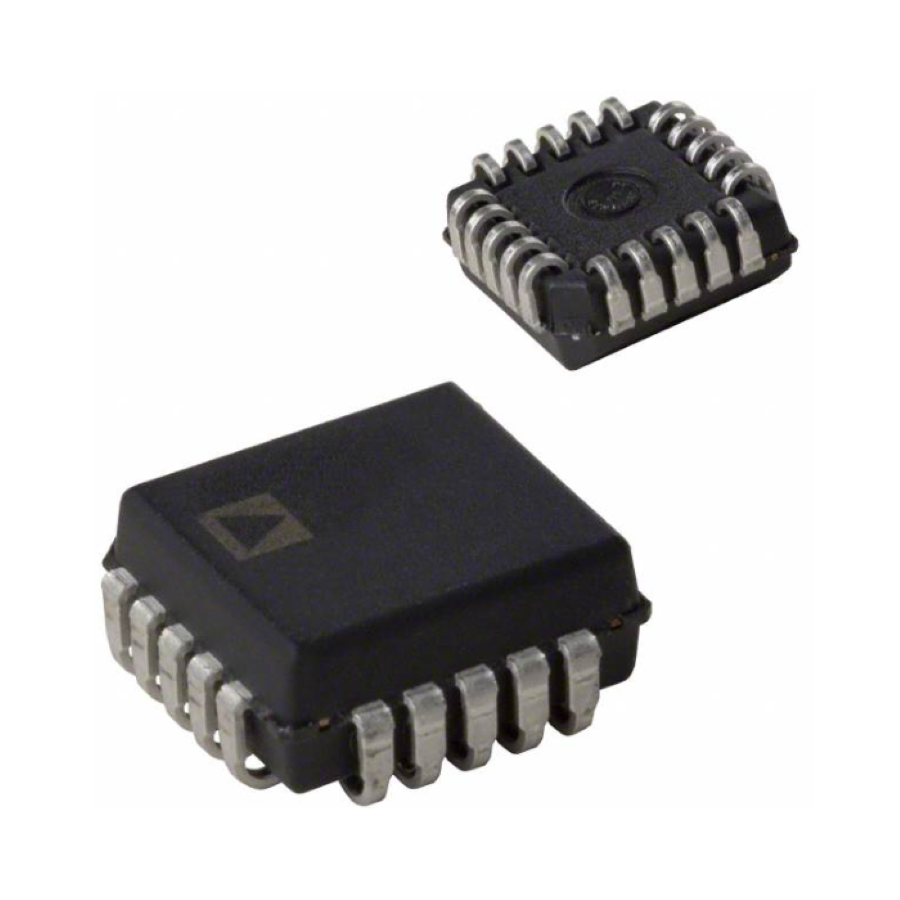

Amplifiers - Op Amps, Buffer, Instrumentation PLCC-20 SMD/SMT Logarithmic Amplifiers Number of Circuits:1
| Parameter | Value |
|---|---|
| Length | 9.04 mm |
| Width | 9.04 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Resistance | 500 kΩ |
| Height | 3.68 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Number of Circuits | 1 |
| Bandwidth | 250 MHz |
| Max Power Dissipation | 220 mW |
| Max Supply Voltage | 7.5 V |
| Min Supply Voltage | 4.5 V |
| Power Dissipation | 220 mW |
| Response Time | 10 ns |
| Number of Channels | 1 |
| Operating Supply Current | 44 mA |
| -3db Bandwidth | 250 MHz |
| Input Bias Current | 25 µA |
| Dual Supply Voltage | 5 V |
| Nominal Supply Current | 44 mA |
| Output Current per Channel | 2.3 mA |
| Input Offset Voltage (Vos) | 200 µV |
| Max Dual Supply Voltage | 7.5 V |
| Min Dual Supply Voltage | 4.5 V |
| Schedule B | 8542330000 |
| Amplifier Type | Logarithmic Amplifiers |
Stock: 2
Distributors
pcbx
pcbxUnit Price$75.68740
Ext.Price$75.68740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $75.68740 | $75.68740 |
